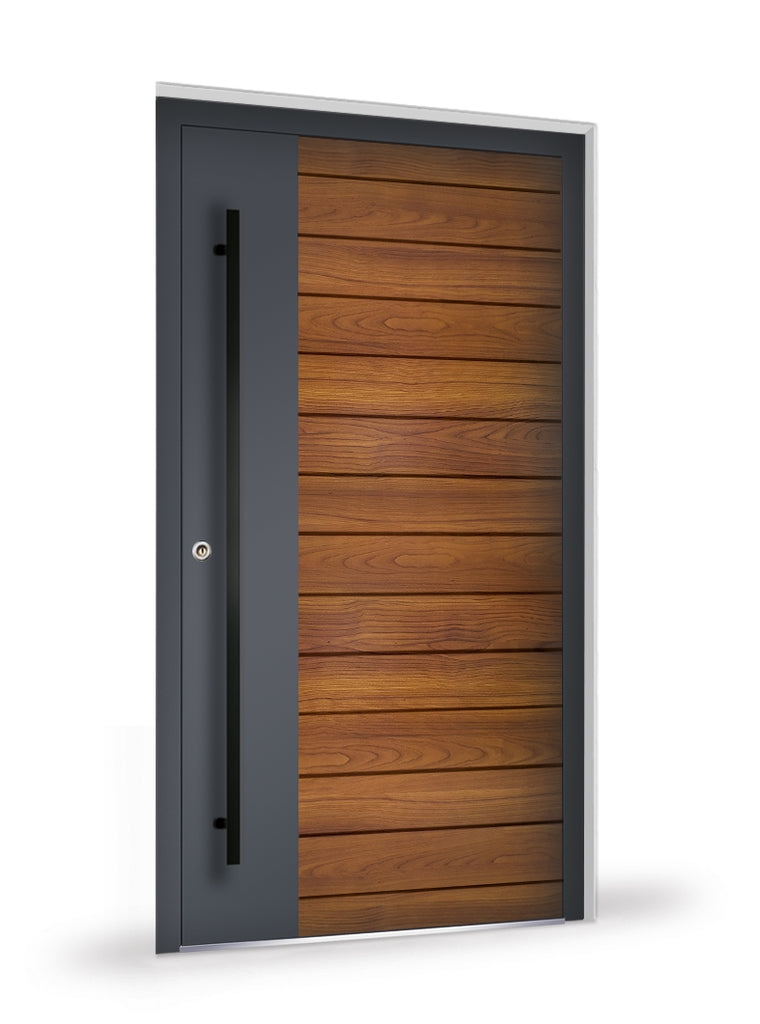

Model 6123

Full filling model with horizontal milling. Smooth aluminum panel from the inside with the option of a pattern identical to the exterior. Stainless steel door digging plate option: glued or aligned. Used in three types of filling panels: plate, single-sided and double-sided clad panels.

Modern solutions

Aluminum is an increasingly popular material for entrance doors. This aluminum solution is used primarily by people who value modernity, prestigious and solid solutions as well as unique design tailored to individual needs. Panel doors are a proposal for the most demanding users. Due to modern technical solutions and original appearance, they can be not only a functional and durable entrance to the house, but also a showcase and decoration. External doors are made of extruded aluminum sections based on the MB-86 system, which guarantees high quality and accuracy of frame and sash profiles.

Parameters and properties

Technical data and parameters:

  • Frame / sash depth:  77 mm (3")
  • Filling panel thickness: 77 mm (3")
  • Maximum leaf dimensions: L up to 1400 mm, H up to 2600 mm
  • Air permeability: Class 4, PN-EN 12207: 2001
  • Water tightness: from Class E900 (900 Pa), PN-EN 12208: 2001
  • Wind load resistance: from Class C5 / B5, PN-EN 12210: 2001
  • Thermal insulation:  Ud from 0,63 W / m2K
  • RC2 anti-burglary class

Specification

The multi-point lock  is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges  and concealed hinges .
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 3"
Thermal insulation: R-Value 5.6

The door set includes:

- Aluminum door and the door frame;
- the  door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system : full locking in 3 points, - 2 hooks, - 1 bolt
- Threshold strip 0.8" height;
- anti-burglary class lock insert with 3 keys.

Double-sided overlay

Model

panel doors double-sided overlay

Side section

panel doors double-sided overlay

Bottom section

panel doors double-sided overlay



The filling panels are available in many different designs and colors. The techniques of making milling cutters of various shapes, decorative applications and the insertion of insulated glass used in their production give countless combinations and variants. Thanks to this, doors with their use can be used both in modern homes and in classic-style architecture. However, they always constitute a beautiful entrance to the building, which attracts attention and adds charm to the entrance façade. The door fillings are made of durable and weather-resistant materials. External elements are often additionally covered with layers of special varnishes or contain epoxy resins in their surface, thanks to which the panels retain their presentable appearance for a long time.

A big advantage of aluminum doors are excellent anti-burglary parameters and acoustic insulation, as well as resistance to weather conditions. Doors made of this material do not deform as a result of high sunlight or the action of water. The load-bearing structures of the  MB-86 system profiles create a light and stable product with very good acoustic parameters and guaranteeing water and air tightness, which has an extremely important impact on comfort in use and costs related to the heated or an air-conditioned room.
